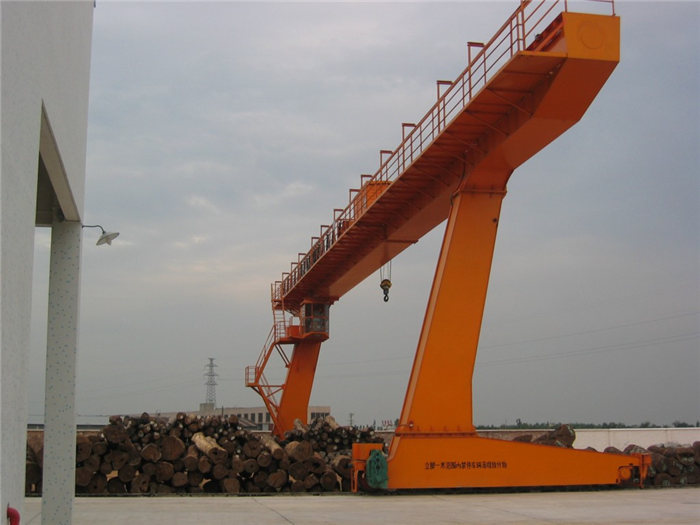

本機適用于碼頭、貨場等露天作業的裝卸搬運場所，特別適用于吊運細長形物件，固廣泛應用于木料堆場、樁管廠等。該機作業空間大，便于運輸、安裝。
全國統一銷售熱線
86-13929139265
全國統一銷售熱線
L型20t/5t單主梁吊鉤門式起重機主要技術參數及尺寸
一、簡介：

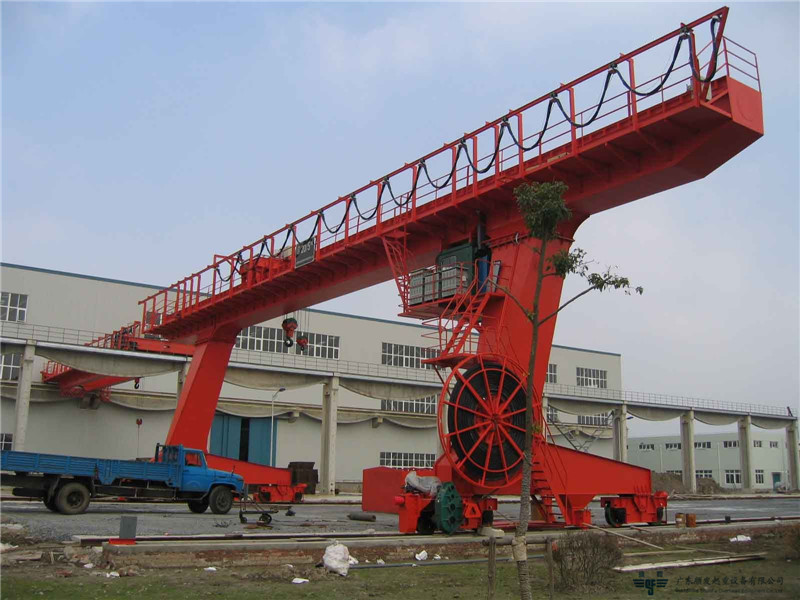

1.L型20t/5t單主梁吊鉤門式起重機適用于露天貨場、鐵路沿線進行一般的裝卸吊裝及起重搬運工作。
2. L型20t/5tt龍門吊因結構特點，在起升高度一定的情況下，整機的高度有所降低,節約了成本。
3 .L型20t/5tt龍門吊起重機自重輕,輪壓小，性能可靠。
Introduction:
1. L Type Single Girder Gantry Crane is opplid to general materials handling service in outdoor freight yard or along
railway lines,such as loading, unloading, lifting and transferring work.
2. Given certain lift height,theoverrall height ofL Type Gantry Crane is reduced out of its structural features. As a
result, the cost is lowered.
3. L Type Gantry Crane is featured by Light deadweightjight wheel load and reliable performance.

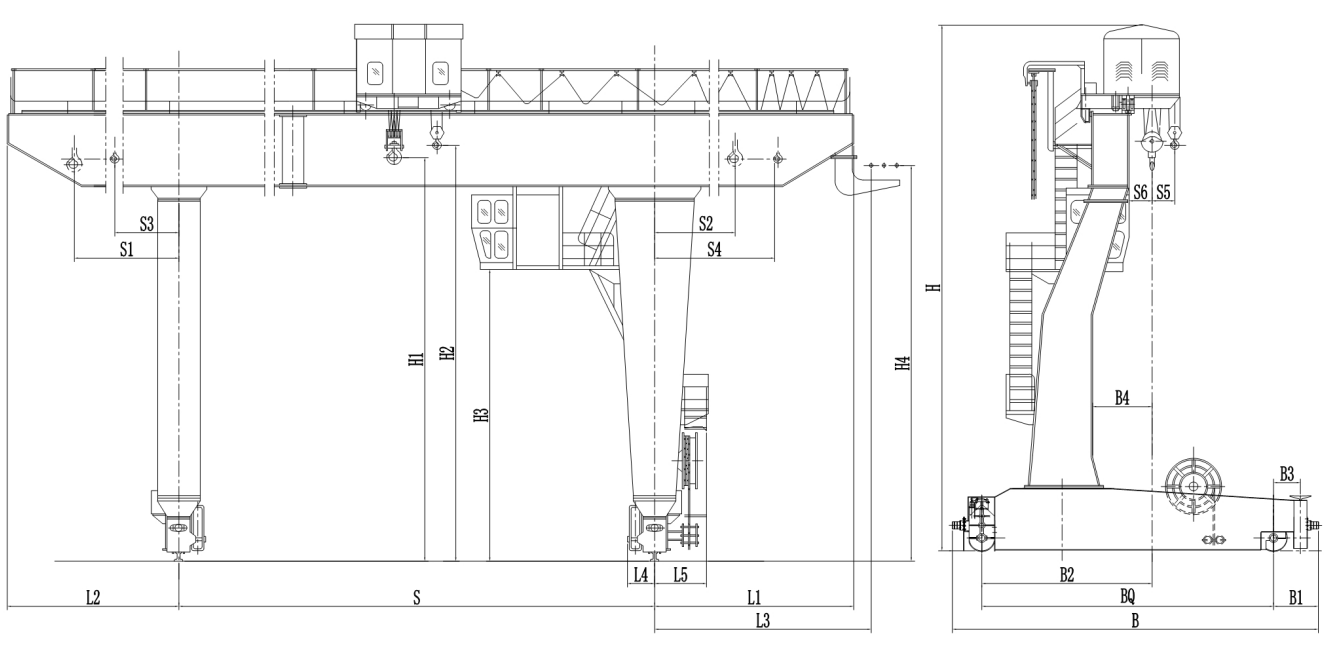

二、設計圖紙
三、主要技術規格表：
起重量 Cap | 主鉤 Main | t | 20 | |||||
副鉤 Auxiliary | 5 | |||||||
跨度 Span | m | 18 | 22 | 26 | 30 | 35 | ||
起升高度 Lifting Height | 主鉤 Main | 10 | 11 | |||||
副鉤 Auxiliary | 10.5 | 11.5 | ||||||
工作制度Duty | A5 | |||||||
速度 Speed | 主 鉤Main | m/min | 7.1 | |||||
副 鉤 Auxiliary | 9.2 | |||||||
小車運行 Crab travelling | 39.3 | |||||||
大車運彳丁 Trolley travelling | 40.1 | 47.1 | ||||||
極限尺寸 Limt dimension | L1 | mm | 7200 | 9200 | ||||
L2 | 7900 | 10400 | ||||||
L | 1483 | |||||||
C1 | 5000 | 7000 | ||||||
C2 | 5000 | 7000 | ||||||
主要尺寸 Main dimenstion | H | 13860 | 14860 | |||||
H1 | 10 | 11 | ||||||
H2 | 0 | |||||||
H3 | 660 | 762 | ||||||
B | 9250 | 10000 | ||||||
W | 7500 | 8000 | ||||||
K | 1250 | 1350 | 1550 | |||||
L3 | 65Q | |||||||
最 大輪壓 Max.Wheel Loading | kN | 340 | 346 | -362 | 419 | 432 | ||
電機總功率Total Power | kw | 67.3 | 78.3 | |||||
薦用鋼軌 Crane Rail Recommended | 43kg/m | |||||||
電 源 Power Supply | 三相交流 3-Phase A.C.50HZ 380V | |||||||
